Sealtite bridge clips can be used to fasten bridge decks in a variety of situations as an alternative to hook bolts. The flexible spring steel design allows for use in applications such as stepped cover plates where a hook bolt may not be the best solution.  They are available in 3 sizes to accommodate for variations in the flange thickness and associated cover plates.

*For use with standard 3/4" bolts when the hole can't be located right next to the flange.



LBN Part Number       Description

ETBCH075-15                            #15 Bridge Clip - For cover plate thickness to 1-1/2"



ETBCH075-25                            #25 Bridge Clip - For cover plate thickness to 2-1/2"



ETBCH075-45                            #45 Bridge Clip - For cover plate thickness to 4-1/2"





Images Below - Click to Enlarge

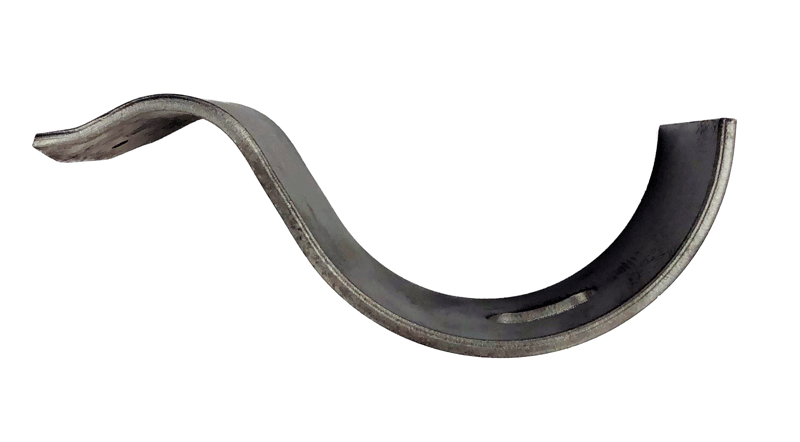

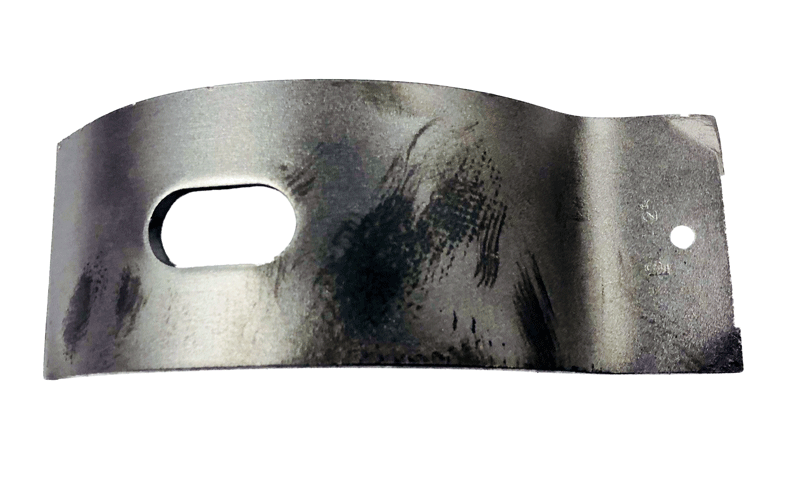

Sealtite Bridge Clips
